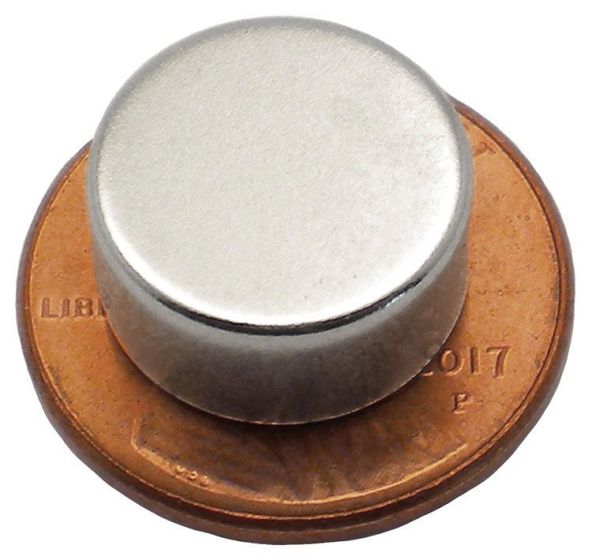

1/2 x 1/4 Inch Samarium Cobalt Disc Magnet SmCo30 (10 Pack)
$41.99
In stock
SKU
M12x14DISmCo
- Buy 10 for $40.73 each and save 3%
- Buy 25 for $39.47 each and save 6%
- Buy 50 for $37.79 each and save 10%
- Buy 100 for $35.69 each and save 15%
- Buy 250 for $32.75 each and save 22%
- Buy 500 for $29.39 each and save 30%
- Contact Us if you are ordering more than 500
- 10 magnets
- Pull Force: 6.88 pounds per magnet
- SKU# M12x14DISmCo
- 10 magnets 1/2" diameter x 1/4" thick (12.7mm x 6.35mm)
- Material: Samarium Cobalt (SmCo)
- Grade: SmCo30
- Coating: Nickel (Ni)
- Magnetization: Through Thickness
- Pull Force: 6.88 pounds
- SKU# M12x14DISmCo
- MAGNETS ARE NOT SAFE FOR CHILDREN.
| Magnetization-Shape-Direction | disc-axial |
|---|---|
| SKU | M12x14DISmCo |
| Color | Nickel (Bright Metallic) |
| Grade | SmCo30 |
| Coating | Nickel |
| Shape | Disc |
| Diameter/Length (in) | 0.50 |
| Diameter/Length Fractional) | 1/2 |
| Thickness (in) | 0.25 |
| Diameter/Length (mm) | 12.70 |
| Thickness (mm) | 6.35 |
| Pull Force (pounds) | 6.88 |
| Maximum Operating Temperature (F) | 572 |
| Magnetization Direction | Through Round Thickness/Length (Axial) |
| Remanence Br (magnet material) | 11.0 kG typ., 10.8 min (1.10 T typ., 1.08 min) |
| Intrinsic Coercivity Hcj / Hci (magnet material) | ≥ 18 kOe (≥ 1,432 kA/m) |
| Max Energy Product BHmax (magnet material) | 30 MGOe typ., 28 min (239 kJ/m³ typ., 223 min) |
| Maximum Operating Temperature (C) | 300 |
| Mounting Type | None (plain magnet) |
| Pull Force (kg) | 3.12 |
| Weight per Piece (g) | 6.76 |
| Pull Force Basis | Calculated: single magnet to thick steel plate (zero gap) |
| Applications | Sensors & Electronics, Industrial & Workshop |
| Minimum Age (years) | 18 |
| Safety Warning | Not a toy. Keep away from children under 18. Swallowed magnets can cause serious internal injury. Strong magnets can pinch skin and may interfere with pacemakers and other implanted medical devices. |
| RoHS Compliant | Yes |
| REACH Compliant | No |
