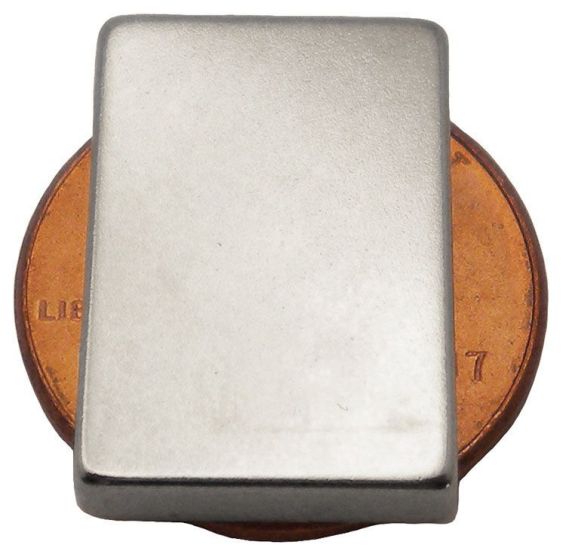

3/4 x 1/2 x 1/8 Inch Samarium Cobalt Block Magnet SmCo30 (4 Pack)
$30.99
In stock
SKU
M34x12x18BLSmCo
- Buy 10 sets for $30.06 each and save 3%
- Buy 25 sets for $29.13 each and save 6%
- Buy 50 sets for $27.89 each and save 10%
- Buy 100 sets for $26.34 each and save 15%
- Buy 250 sets for $24.17 each and save 22%
- Buy 500 sets for $21.69 each and save 30%
- Contact Us if you are ordering more than 500
- 4 magnets
- Pull Force: 5.75 pounds per magnet
- SKU# M34x12x18BLSmCo
- 4 magnets
- 3/4" long x 1/2" wide x 1/8" thick (19.05mm x 12.7mm x 3.175mm)
- Material: Samarium Cobalt (SmCo)
- Grade: SmCo30
- Coating: Nickel (Ni)
- Magnetization: Through Thickness
- Pull Force: 5.75 pounds
- SKU# M34x12x18BLSmCo
- MAGNETS ARE NOT SAFE FOR CHILDREN.
| Magnetization-Shape-Direction | block-axial |
|---|---|
| SKU | M34x12x18BLSmCo |
| Color | Nickel (Bright Metallic) |
| Grade | SmCo30 |
| Coating | Nickel |
| Shape | Block |
| Diameter/Length (in) | 0.75 |
| Width (in) | 0.50 |
| Width (mm) | 12.70 |
| Thickness (in) | 0.12 |
| Diameter/Length (mm) | 19.05 |
| Thickness (mm) | 3.18 |
| Pull Force (pounds) | 5.75 |
| Gauss (Surface) | 2498 |
| Maximum Operating Temperature (F) | 572 |
| Magnetization Direction | Through Rectangular Thickness (Axial) |
| Remanence Br (magnet material) | 11.0 kG typ., 10.8 min (1.10 T typ., 1.08 min) |
| Intrinsic Coercivity Hcj / Hci (magnet material) | ≥ 18 kOe (≥ 1,432 kA/m) |
| Max Energy Product BHmax (magnet material) | 30 MGOe typ., 28 min (239 kJ/m³ typ., 223 min) |
| Maximum Operating Temperature (C) | 300 |
| Mounting Type | None (plain magnet) |
| Pull Force (kg) | 2.61 |
| Weight per Piece (g) | 6.45 |
| Pull Force Basis | Calculated: single magnet to thick steel plate (zero gap) |
| Applications | Sensors & Electronics, Industrial & Workshop |
| Minimum Age (years) | 18 |
| Safety Warning | Not a toy. Keep away from children under 18. Swallowed magnets can cause serious internal injury. Strong magnets can pinch skin and may interfere with pacemakers and other implanted medical devices. |
| RoHS Compliant | Yes |
| REACH Compliant | No |
