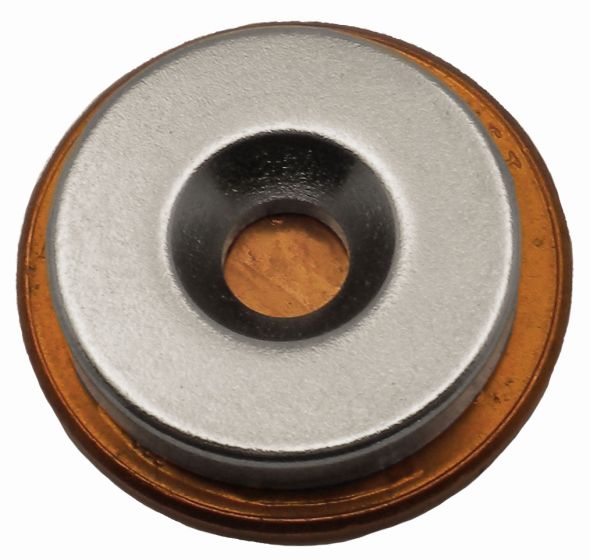

5/8 x 1/8 Inch Neodymium Countersunk Ring Magnet N48 (4 Pack)
$8.99
In stock
SKU
M58x18x18CSR
- Buy 10 sets for $8.72 each and save 3%
- Buy 25 sets for $8.45 each and save 6%
- Buy 50 sets for $8.09 each and save 10%
- Buy 100 sets for $7.64 each and save 15%
- Buy 250 sets for $7.01 each and save 22%
- Buy 500 sets for $6.29 each and save 30%
- Contact Us if you are ordering more than 500
- 4 magnets
- Pull Force: 7.20 pounds per magnet
- SKU# M58x18x18CSR
- 4 magnets;
- 5/8" diameter x 1/8" thick (15.875mm x 3.175mm ) with #6 screw holes
- 2 pcs with north pole on screw hole side/ 2 pcs with south pole on screw hole side
- Material: Neodymium (NdFeB)
- Grade: N48
- Coating: Nickel (Ni)
- Magnetization: Through Thickness
- Pull Force: 7.20 pounds
- SKU# M58x18x18CSR
- Rare Earth Magnets are the strongest permanent magnets for sale today. Small rare earth magnets are perfect for crafts and DIY. We also sell large rare earth magnets for heavy duty projects where super strong pull force is required.
- NEODYMIUM MAGNETS ARE NOT SAFE FOR CHILDREN.
| Magnetization-Shape-Direction | countersink-ring-axial |
|---|---|
| SKU | M58x18x18CSR |
| Color | Nickel (Bright Metallic) |
| Grade | N48 |
| Coating | Nickel |
| Shape | Ring |
| Diameter/Length (in) | 0.62 |
| Width (in) | 0.12 |
| Width (mm) | 3.18 |
| Thickness (in) | 0.12 |
| Diameter/Length (mm) | 15.88 |
| Thickness (mm) | 3.18 |
| Pull Force (pounds) | 7.20 |
| Gauss (Surface) | 3783 |
| Maximum Operating Temperature (F) | 176 |
| Magnetization Direction | Through Round Thickness/Length (Axial) |
| Remanence Br (magnet material) | 13.7–14.2 kG (1.37–1.42 T) |
| Intrinsic Coercivity Hcj / Hci (magnet material) | ≥ 12 kOe (≥ 955 kA/m) |
| Max Energy Product BHmax (magnet material) | 46–49 MGOe (366–390 kJ/m³) |
| Maximum Operating Temperature (C) | 80 |
| Screw / Thread Size | #6 |
| Mounting Type | Countersunk Hole |
| Pull Force (kg) | 3.27 |
| Pull Force Basis | Calculated: adjusted for coating / adhesive / mounting hole |
| Applications | Hanging & Organization |
| Pole Configuration | Sold as N/S pairs |
| Minimum Age (years) | 18 |
| Safety Warning | Not a toy. Keep away from children under 18. Swallowed magnets can cause serious internal injury. Strong magnets can pinch skin and may interfere with pacemakers and other implanted medical devices. |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
