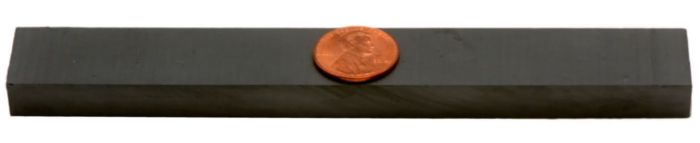

6 x 13/16 x 3/8 Inch Ceramic Block Magnet C11 (4 Pack)
Special Price
$8.99
Regular Price
$13.99
In stock
SKU
MCER6X1316X38BL
- Contact Us if you are ordering more than 500
- 4 magnets
- Pull Force: 9.05 pounds per magnet
- SKU# MCER6X1316X38BL
- 4 magnets 6" long x 13/16" wide x 3/8" thick (152.4mm x 20.65mm x 9.525mm)
- Material: Ferrite
- Grade: C-11
- Magnetization: Through Thickness
- Pull Force: 9.05 pounds
- SKU# MCER6X1316X38BL
| Magnetization-Shape-Direction | block-axial |
|---|---|
| SKU | MCER6X1316X38BL |
| Color | None |
| Grade | C-11 |
| Coating | Nickel |
| Shape | Block |
| Diameter/Length (in) | 6.00 |
| Width (in) | 0.81 |
| Width (mm) | 20.65 |
| Thickness (in) | 0.37 |
| Diameter/Length (mm) | 152.40 |
| Thickness (mm) | 9.52 |
| Pull Force (pounds) | 9.05 |
| Gauss (Surface) | 1291 |
| Maximum Operating Temperature (F) | 482 |
| Magnetization Direction | Through Rectangular Thickness (Axial) |
| Remanence Br (magnet material) | ≥ 4.30 kG (≥ 0.43 T) |
| Intrinsic Coercivity Hcj / Hci (magnet material) | ≥ 2.56 kOe (≥ 204 kA/m) |
| Max Energy Product BHmax (magnet material) | ≥ 4.32 MGOe (≥ 34.4 kJ/m³) |
