17 lb Neodymium Pot Mounting Magnet (4 Pack)
$15.99
In stock
SKU
MPOT17
- Buy 10 sets for $15.51 each and save 3%
- Buy 25 sets for $15.19 each and save 5%
- Buy 50 sets for $14.71 each and save 8%
- Buy 100 sets for $14.23 each and save 11%
- Buy 250 sets for $13.75 each and save 14%
- Buy 500 sets for $13.11 each and save 18%
- Contact Us if you are ordering more than 500
- 4 magnets
- Pull Force: 17.00 pounds per magnet
- MPOT17
- 4 Rare Earth Magnets in steel case - Real World Tested to Hold 17 lbs**
- 17 lb capacity is rated for vertical use: magnet mounted to the underside of a steel surface (such as a steel ceiling or shelf) with the load pulling straight down
- Horizontal use (magnet mounted on a steel wall, cabinet side or refrigerator, with the load sliding along the surface) reduces capacity by 2/3, to about 6 lb

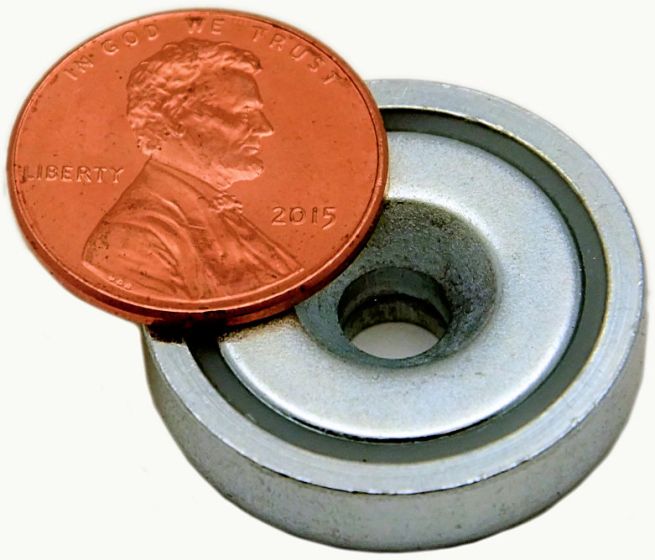

- 1" Base x 1/4" Height
- Countersink accepts #8 screw for flush mounting
- Material: Zinc coated Neodymium magnet
- Grade: N40
- Housing: Zinc Plated Steel
- Magnetization: Through Thickness
- Pull Force: 17.00 pounds
- SKU: MPOT17
- Rare Earth Magnets are the strongest permanent magnets for sale today. Small rare earth magnets are perfect for crafts and DIY. We also sell large rare earth magnets for heavy duty projects where super strong pull force is required.
- NEODYMIUM MAGNETS ARE NOT SAFE FOR CHILDREN.
| Magnetization-Shape-Direction | countersink-block-axial |
|---|---|
| SKU | MPOT17 |
| Color | Zinc |
| Grade | N40 |
| Coating | Metal Housing - Zinc Plated |
| Shape | Countersink |
| Diameter/Length (in) | 1.00 |
| Thickness (in) | 0.25 |
| Diameter/Length (mm) | 25.40 |
| Thickness (mm) | 6.35 |
| Pull Force (pounds) | 17 |
| Maximum Operating Temperature (F) | 176 |
| Magnetization Direction | Through Round Thickness/Length (Axial) |
| Remanence Br (magnet material) | 12.5–12.9 kG (1.25–1.29 T) |
| Intrinsic Coercivity Hcj / Hci (magnet material) | ≥ 12 kOe (≥ 955 kA/m) |
| Max Energy Product BHmax (magnet material) | 38–41 MGOe (302–326 kJ/m³) |
| Maximum Operating Temperature (C) | 80 |
| Screw / Thread Size | #8 |
| Mounting Type | Pot (Steel Cup) |
| Pull Force (kg) | 7.71 |
| Wall-Mount (Shear) Capacity (lb) | 5.7 |
| Pull Force Basis | Tested assembly: direct vertical pull |
| Applications | Hanging & Organization |
| Minimum Age (years) | 18 |
| Safety Warning | Not a toy. Keep away from children under 18. Swallowed magnets can cause serious internal injury. Strong magnets can pinch skin and may interfere with pacemakers and other implanted medical devices. |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
